AM854x系列

作者：master 時間：2018-04-20 15:26:05 閱讀次數(shù)：1204

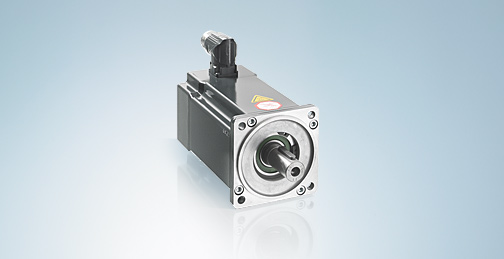

　　AM854x|Servomotor with increased moment of inertia 2.45–5.65 Nm(standstill torque)

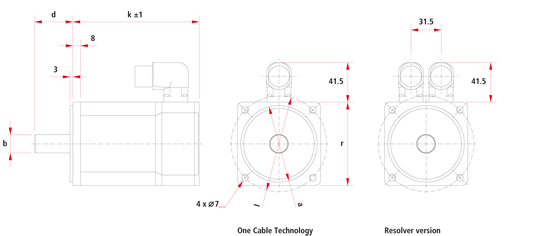

Dimensions a b d l r k (without brake) k (with brake)
AM8541 80 j6 19 k6 40 mm 100 mm 87 mm 179.5 mm 209.5 mm
AM8542 80 j6 19 k6 40 mm 100 mm 87 mm 209.5 mm 239.5 mm
AM8543 80 j6 19 k6 40 mm 100 mm 87 mm 239.5 mm –

Accessories
AG2210-+LP070S Planetary gear unit size 070
AG2210-+LP090S Planetary gear unit size 090
AX5101 Digital Compact Servo Drives, 1-channel, 1.5 A
AX5201 Digital Compact Servo Drives, 2-channel, 2 x 1.5 A
AX5103 Digital Compact Servo Drives, 1-channel, 3 A
AX5203 Digital Compact Servo Drives, 2-channel, 2 x 3 A
AX5106 Digital Compact Servo Drives, 1-channel, 6 A
AX5206 Digital Compact Servo Drives, 2-channel, 2 x 6 A
AX5112 Digital Compact Servo Drives, 1-channel, 12 A
ZK450x-8003-xxxx motor cable 1.5 mm2 with M23 speedtec? plug, 12 A, fixed installation
ZK450x-8023-xxxx motor cable 1.5 mm2 with M23 speedtec? plug, 12 A, highly flexible, for drag-chain use
AX5118 Digital Compact Servo Drives, 1-channel, 18 A
AX5125 Digital Compact Servo Drives, 1-channel, 25 A
ZK450x-8004-xxxx motor cable 2.5 mm2 with M23 speedtec? plug, 18 – 25 A, fixed installation
ZK450x-8024-xxxx motor cable 2.5 mm2 with M23 speedtec? plug, 18 – 25 A, highly flexible, for drag-chain use
ZK453x-8010-xxxx Resolver cable 4 x 2 x 0.25 mm2 with M23 speedtec? plug, dynamic for drag-chain use
