AM855x系列

作者：master 時(shí)間：2018-04-20 15:28:17 閱讀次數(shù)：1144

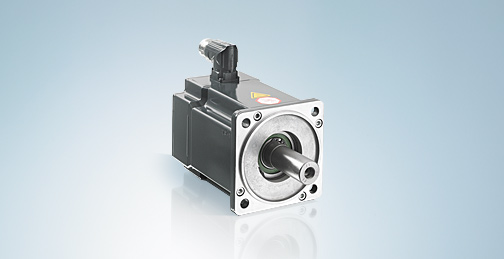

　　AM855x|Servomotor with increased moment of inertia 4.9–11.4 Nm(standstill torque)

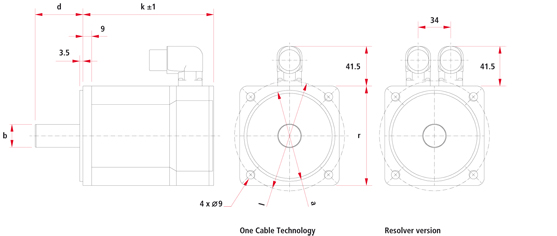

Dimensions a b d l r k (without brake) k (with brake)
AM8551 95 j6 24 k6 50 mm 115 mm 104 mm 183.5 mm 216.5 mm
AM8552 95 j6 24 k6 50 mm 115 mm 104 mm 216.5 mm 251.5 mm
AM8553 95 j6 24 k6 50 mm 115 mm 104 mm 251.5 mm –

Accessories
AG2210-+LP090S Planetary gear unit size 090
AG2210-+LP120S Planetary gear unit size 120
AX5101 Digital Compact Servo Drives, 1-channel, 1.5 A
AX5201 Digital Compact Servo Drives, 2-channel, 2 x 1.5 A
AX5103 Digital Compact Servo Drives, 1-channel, 3 A
AX5203 Digital Compact Servo Drives, 2-channel, 2 x 3 A
AX5106 Digital Compact Servo Drives, 1-channel, 6 A
AX5206 Digital Compact Servo Drives, 2-channel, 2 x 6 A
AX5112 Digital Compact Servo Drives, 1-channel, 12 A
ZK450x-8003-xxxx motor cable 1.5 mm2 with M23 speedtec? plug, 12 A, fixed installation
ZK450x-8023-xxxx motor cable 1.5 mm2 with M23 speedtec? plug, 12 A, highly flexible, for drag-chain use
AX5118 Digital Compact Servo Drives, 1-channel, 18 A
AX5125 Digital Compact Servo Drives, 1-channel, 25 A
ZK450x-8004-xxxx motor cable 2.5 mm2 with M23 speedtec? plug, 18 – 25 A, fixed installation
ZK450x-8024-xxxx motor cable 2.5 mm2 with M23 speedtec? plug, 18 – 25 A, highly flexible, for drag-chain use
ZK453x-8010-xxxx Resolver cable 4 x 2 x 0.25 mm2 with M23 speedtec? plug, dynamic for drag-chain use
