AM856x系列

作者：master 時(shí)間：2018-04-20 15:31:12 閱讀次數(shù)：1189

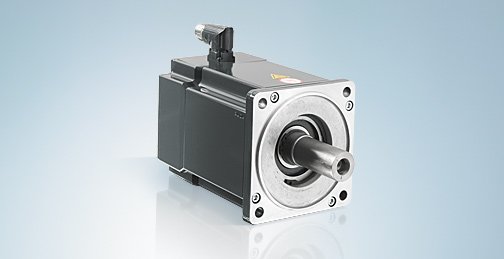

　　AM856x|Servomotor with increased moment of inertia 12.8–29 Nm(standstill torque)

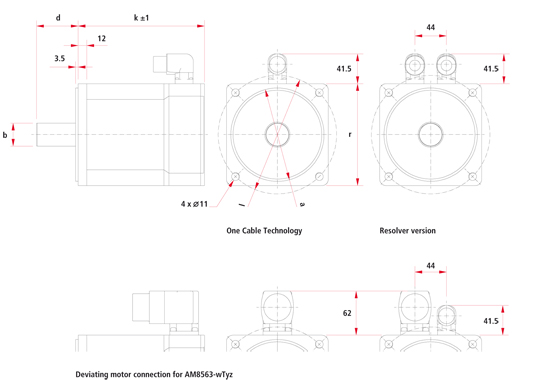

Dimensions a b d l r k (without brake) k (with brake)
AM8561 130 j6 32 k6 58 mm 165 mm 142 mm 228 mm 268 mm
AM8562 130 j6 32 k6 58 mm 165 mm 142 mm 268 mm 315 mm
AM8563 130 j6 32 k6 58 mm 165 mm 142 mm 315 mm –

Accessories
AG2210-+LP120S Planetary gear unit size 120
AX5101 Digital Compact Servo Drives, 1-channel, 1.5 A
AX5201 Digital Compact Servo Drives, 2-channel, 2 x 1.5 A
AX5103 Digital Compact Servo Drives, 1-channel, 3 A
AX5203 Digital Compact Servo Drives, 2-channel, 2 x 3 A
AX5106 Digital Compact Servo Drives, 1-channel, 6 A
AX5206 Digital Compact Servo Drives, 2-channel, 2 x 6 A
AX5112 Digital Compact Servo Drives, 1-channel, 12 A
ZK450x-8003-xxxx motor cable 1.5 mm2 with M23 speedtec? plug, 12 A, fixed installation
ZK450x-8023-xxxx motor cable 1.5 mm2 with M23 speedtec? plug, 12 A, highly flexible, for drag-chain use
AX5118 Digital Compact Servo Drives, 1-channel, 18 A
AX5125 Digital Compact Servo Drives, 1-channel, 25 A
ZK450x-8004-xxxx motor cable 2.5 mm2 with M23 speedtec? plug, 18 – 25 A, fixed installation
ZK450x-8024-xxxx motor cable 2.5 mm2 with M23 speedtec? plug, 18 – 25 A, highly flexible, for drag-chain use
ZK453x-8010-xxxx resolver cable 4 x 2 x 0.25 mm2 with M23 speedtec? plug, flexible for drag-chain use
ZK451x-8020-xxxx encoder cable (7 x 2 x 0.14 mm2 + 2 x 0.5 mm2), with M23 speedtec? plug, flexible for drag-chain use
