AM884x系列

作者：master 時間：2018-04-20 15:36:04 閱讀次數(shù)：1183

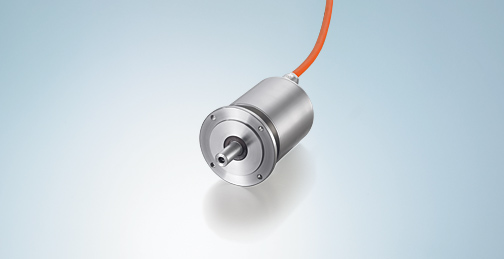

　　AM884x|Stainless steel servomotors from 1.6–3.5 Nm(standstill torque)

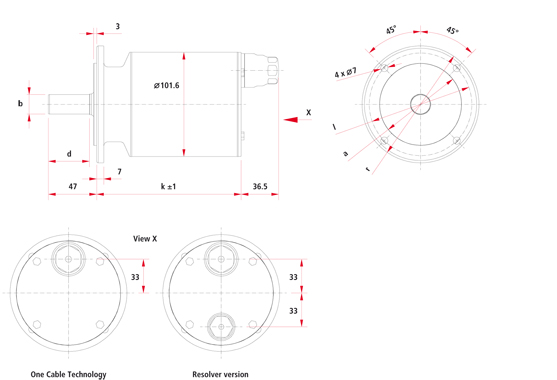

Dimensions a b d l r k (without brake) k (with brake)
AM8841 80 j6 19 k6 40 mm 100 mm 114 mm 141 mm 188 mm
AM8842 80 j6 19 k6 40 mm 100 mm 114 mm 171 mm 218 mm
AM8843 80 j6 19 k6 40 mm 100 mm 114 mm 201 mm 248 mm

Accessories
AG2800-+HDV025Z Stainless steel planetary gear unit size 025
AX5101 Digital Compact Servo Drives, 1-channel, 1.5 A
AX5201 Digital Compact Servo Drives, 2-channel, 2 x 1.5 A
AX5103 Digital Compact Servo Drives, 1-channel, 3 A
AX5203 Digital Compact Servo Drives, 2-channel, 2 x 3 A
AX5106 Digital Compact Servo Drives, 1-channel, 6 A
AX5206 Digital Compact Servo Drives, 2-channel, 2 x 6 A
AX5112 Digital Compact Servo Drives, 1-channel, 12 A
ZK450x-8003-xxxx motor cable 1.5 mm2 with M23 speedtec? plug, 12 A, fixed installation
ZK450x-8023-xxxx motor cable 1.5 mm2 with M23 speedtec? plug, 12 A, highly flexible, for drag-chain use
ZK453x-8010-xxxx Resolver cable 4 x 2 x 0.25 mm2 with M23 speedtec? plug, dynamic for drag-chain use

Stainless steel products
For further information on the stainless steel control solution please see here.
