AM885x系列

作者：master 時(shí)間：2018-04-20 15:38:55 閱讀次數(shù)：1247

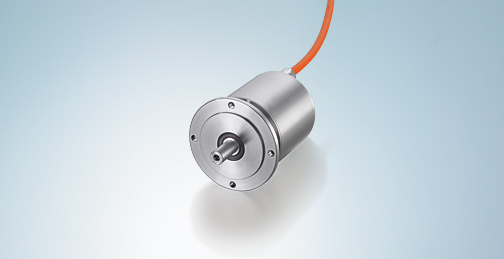

　　AM885x|Stainless steel servomotors from 3.1–6.4 Nm(standstill torque)

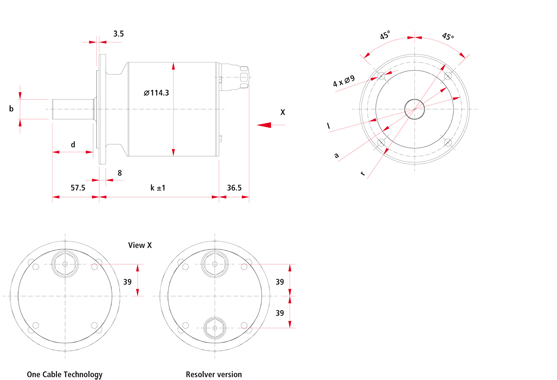

Dimensions a b d l r k (without brake) k (with brake)
AM8851 95 j6 24 k6 50 mm 115 mm 134 mm 146 mm 192 mm
AM8852 95 j6 24 k6 50 mm 115 mm 134 mm 179 mm 225 mm
AM8853 95 j6 24 k6 50 mm 115 mm 134 mm 212 mm 258 mm

Accessories
AG2800-+HDV035Z Stainless steel planetary gear unit size 035
AX5101 Digital Compact Servo Drives, 1-channel, 1.5 A
AX5201 Digital Compact Servo Drives, 2-channel, 2 x 1.5 A
AX5103 Digital Compact Servo Drives, 1-channel, 3 A
AX5203 Digital Compact Servo Drives, 2-channel, 2 x 3 A
AX5106 Digital Compact Servo Drives, 1-channel, 6 A
AX5206 Digital Compact Servo Drives, 2-channel, 2 x 6 A
AX5112 Digital Compact Servo Drives, 1-channel, 12 A
ZK450x-8003-xxxx motor cable 1.5 mm2 with M23 speedtec? plug, 12 A, fixed installation
ZK450x-8023-xxxx motor cable 1.5 mm2 with M23 speedtec? plug, 12 A, highly flexible, for drag-chain use
ZK453x-8010-xxxx Resolver cable 4 x 2 x 0.25 mm2 with M23 speedtec? plug, dynamic for drag-chain use

Stainless steel products
For further information on the stainless steel control solution please see here.
